Description:

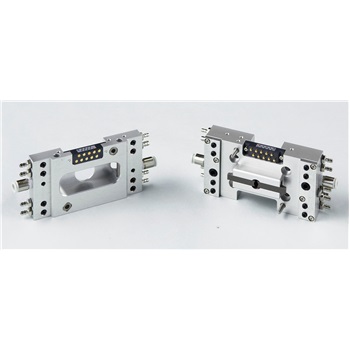

This tooling quick change module permits fast, accurate and repeatable tooling changes.  It has provisions to connect with up to four pneumatic circuits (vacuum and or pressure) and up to nine low voltage electrical circuits with one common ground. Payload is a maximum of 35 kg (77.0 lbs) although the specific robot model may have a lower maximum payload. This model can be used with the following robots: RCII-600/800/1300; YCII-600/800/1300
