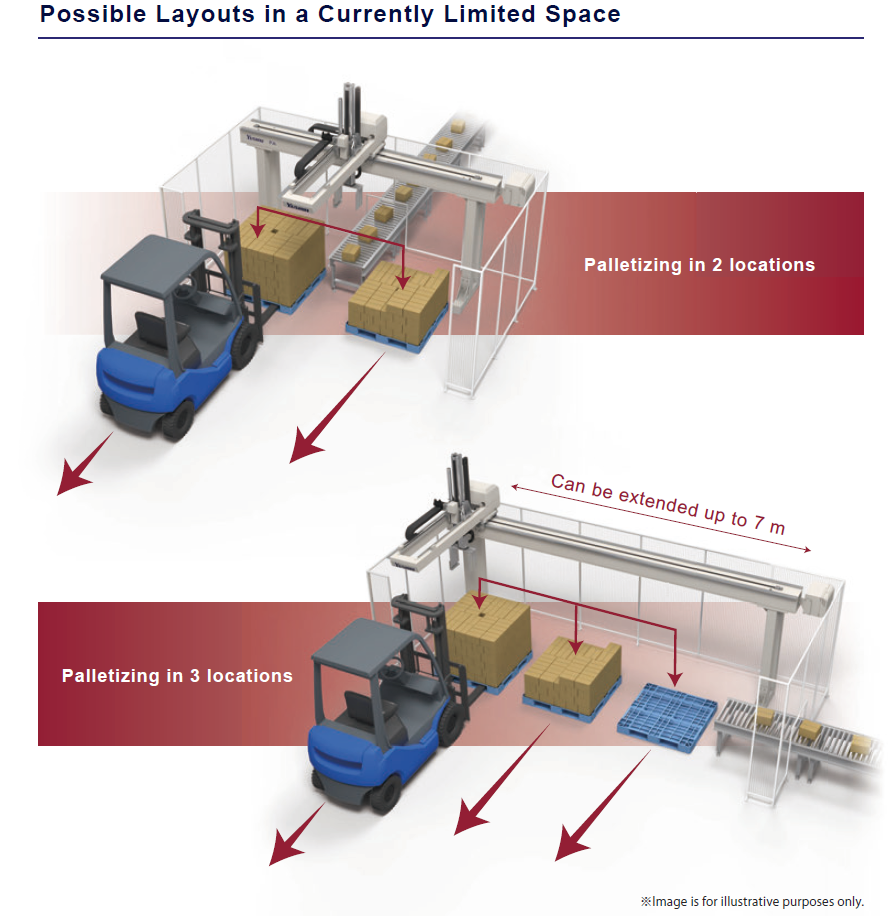

Possible layouts in a currently limited space

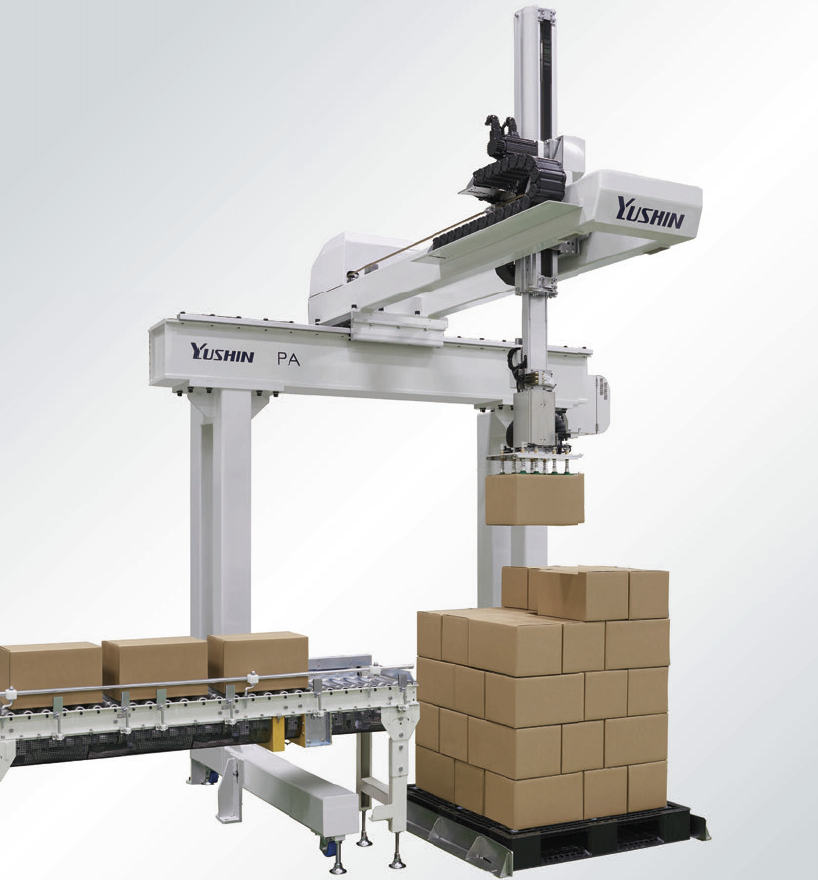

PA series – Compact Palletizing Robot

NEW Yushin Product!

Space-saving palletizing robot used at packing and distribution sites

Yushin developed the space-saving palletizing robot “PA” series for plastic injection molding industry. Palletizing robots are available not only in the manufacturing industry but are now a product for the market where rapid automation is required due to labor shortage at distribution sites. The technical capabilities cultivated up to this point will be utilized. This “PA” series is the “PA-20”, which supports a payload of 20 kg, will meet a wide range of customer needs by offering a lineup of two models of the “PA-40” that support the same 40 kg.

New product features:

The PA palletizing robot contributes to solving labor shortages in the manufacturing sector by automating various applications in the field:

Space-saving designs adds flexibility to production lines

Reduction of installation space that maximizes the advantages of Cartesian robots and placement around the cantilever structure with few columns ensures the freedom of layout. The minimal footprint creates fewer obstacles for conversion, and the limited space can be effectively used.

Easy and quick introduction

The easy operation of the touch panel, which has been highly evaluated in the molding industry, inherits a safe operation that is easy to understand. In addition, the design of the optimum robot hand and the spread throughout the country. With quick production line start-up and maintenance, such as speedy response by service bases Providing such a soft side.

Request a Quote

Category: Palletizing Robot Tags: Distribution, PA Series, Packaging, Pallet Loading, Palletizing, Palletizing Robot

Additional information

Molding Machine Mold Clamping Force	30 tf < x < 500 tf
Max. Payload	15 kg ≤ x < 35 kg, 30 kg ≥ x = 40 kg
Application	Clean Room – Medical, Micro-molding

Features & Benefits

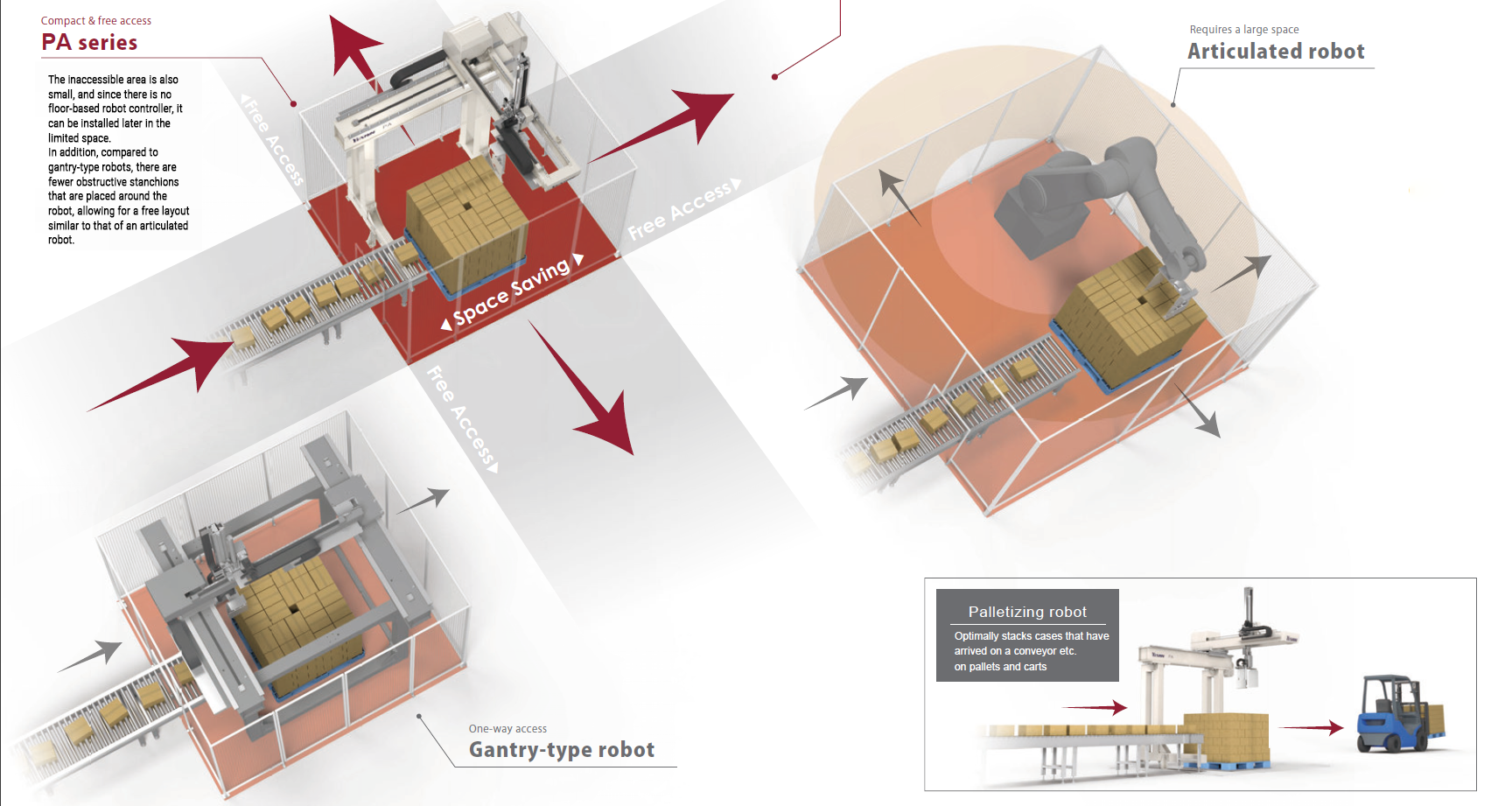

Compact and free access allowing flexible layout

The compact PA series allows a minimum footprint and multiple free access to the robot. Compared to Gantry-type robots, there are fewer obstructive stanchions that are placed around the robot, allowing for a free layout similar to that of an articulated robot.

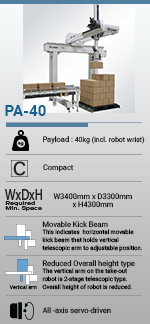

40 kg max. payload (incl. robot wrist)

The PA-40 can handle payloads of up to 40 kg (including the end-of-arm tool) and handle tough loading and unloading carts and pallets. It easily performs fast palletize applications achieving 420 boxes / hour.

Usability that supports easy installation and stable operation

Palletizing applications are smooth on the PA series. Easy operation, even for first-time workers. An interface that has been cultivated over many years in the molding industry lowers any threshold associated with introducing a robot, allowing for smooth operation after introduction.

Speedy Support & Cost Performance

Strong service support that supports optimal robot hand design and other numerous automation and labor-saving results. Quick installations don’t require any production interference. Our team of dedicated technical service engineers located around all regions nationwide, are available to help with immediate issues on-site or online whenever necessary. Phone support is available 24 hours a day, 7 days a week.

Standard Equipment

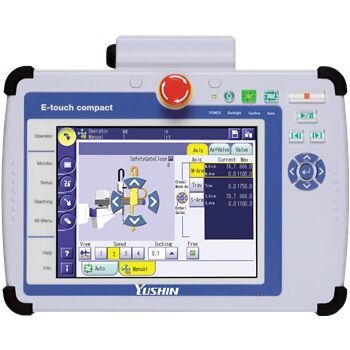

Controller Offers Total Control

7.5 inch full color touchscreen is light-weight and comfortable to handle with easy to learn icon-based displays. Automatically calculate the best palletizing pattern for your operations. The robot teaches itself with the Automap feature that permits “Auto-Run Start” seamlessly. The robot finds pallet position changes automatically with reference position alignment.

Built-in predictive maintenance and troubleshooting support

A predictive maintenance system assists users in scheduling regular maintenance, which effectively minimizes the likelihood of unexpected troubles that require sudden servicing. In any case, if an error occurs, troubleshooting data that makes it easier to pinpoint the cause is logged.
