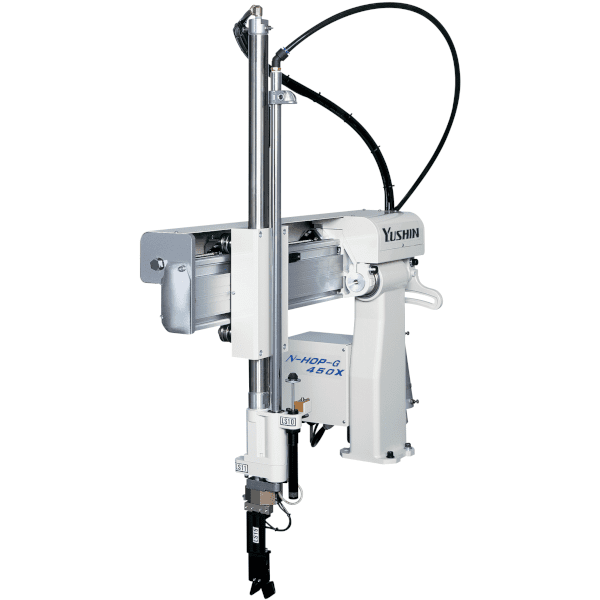

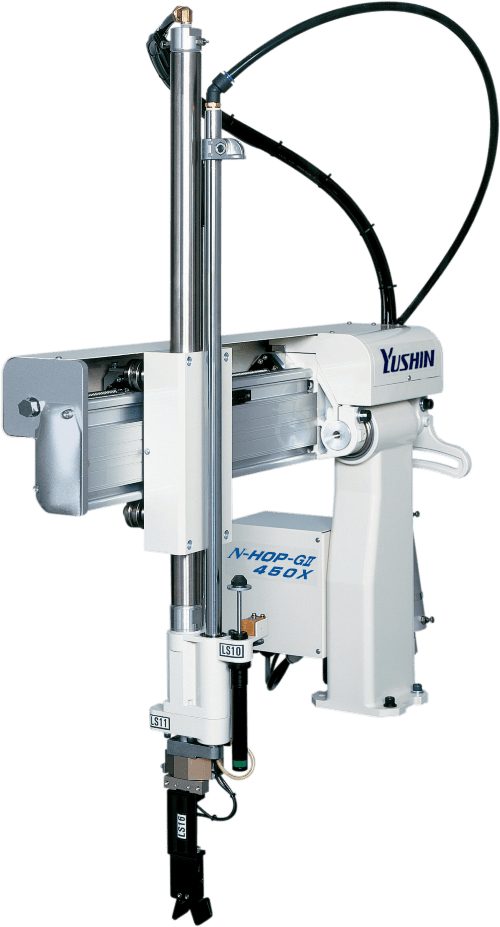

With swing-type take-out robots, the parameter that is most often adjusted when setting up production is the kick stroke. But, the N-HOP-GII employs an NC servo-driven kick axis, so adjustments can be made safely and assuredly from the controller without touching the molding machine. Moreover, servo control means that runners can be stably taken out at high speed.
| Molding Machine Mold Clamping Force | 30 tf < x < 500 tf |
|---|---|
| Max. Payload | Less Than 5 kg |
| Application | Taking Out Just Sprues |
Servo-driven kick axis
[1] No adjustments on the molding machine required
Thanks to NC servo-drive, kick stroke is set and adjusted from the controller and not on the molding machine as was conventionally done.
Functionally versatile but easy-to-use operating system
Multiple language support
3 language support available as an option
Japanese, English and Chinese
