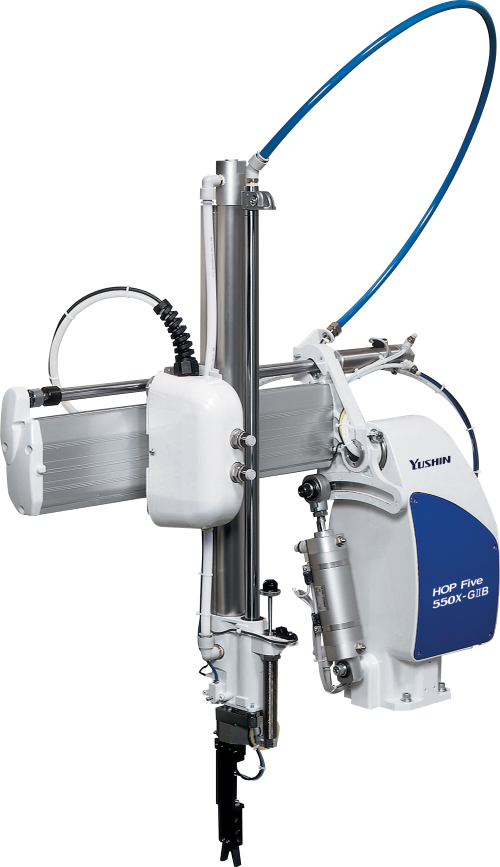

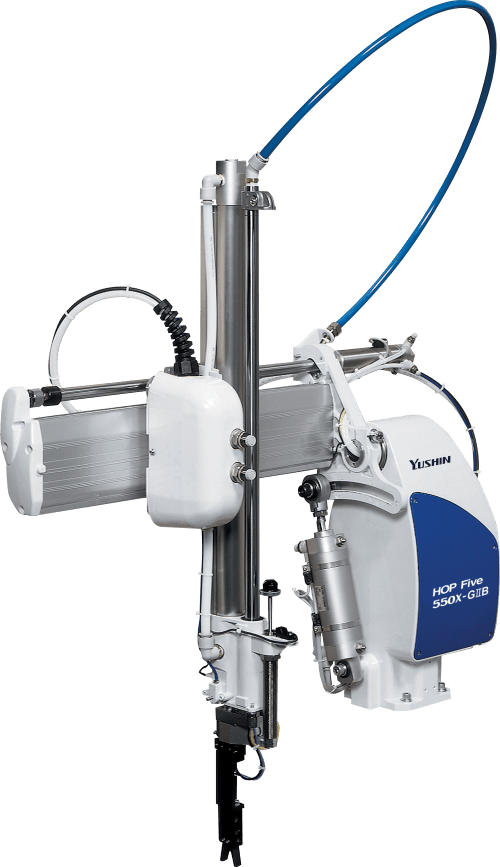

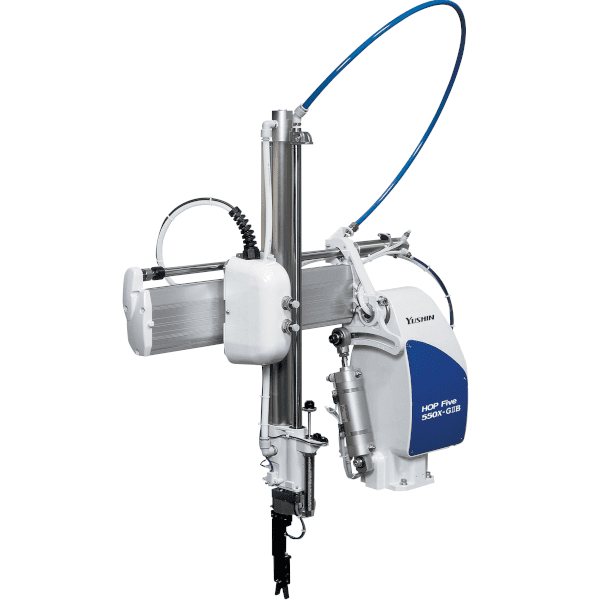

Swing type runner take-out robots have evolved alongside Yushin’s history as a business. HOP Five models house the transformer and control board in the robot body, instead of using standalone units of the past, and yet they require less installation space. Moreover, these robots are built so that principle adjustments like kick stroke can be made at the operator side of the molding machine, which makes production setup more efficient.
| Molding Machine Mold Clamping Force | 30 tf < x < 500 tf |
|---|---|
| Max. Payload | Less Than 5 kg |
| Application | Taking Out Just Sprues |
Functionally loaded compact body
[1] Everything except the controller is incorporated into the robot body.[2] The robots are easy to install, as there are no troublesome external units or harnesses to worry about.[3] It offers efficient operation as its design enables operators to do all the main adjusting operations at theStable high-speed operation
[1] Robot structure supporting its motion[2] HOP Five robots employ a highly rigid base and air cylinders for high-speed operation. Also, a high-speedMultiple language selection
With GBII series controllers, users can select any 2 of the 12 language options.
With CH series controllers, users can select any 3 of the 5 language options.
Operator-friendly design
[1] Designed with curved edges and facesThe blue and white body and piping are readily discernable by operators.
Functionally versatile but easy-to-use operating system (GII series)
Outfitted with the upgraded GIIB Controller
• Large easy-to-see LCD
• Icon-based interface (menus)
• Silicon key tops of enhanced tactile sensation when touched
• Data storage for up to 30 molds
• Data backup onto SD card supported
An operating system focused on simplicity (CH series)
Equipped with the CH Controller
• 2-line LCD
• Data storage for up to 15 molds
